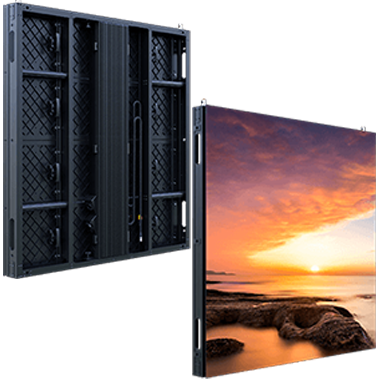

- Online OREX LED

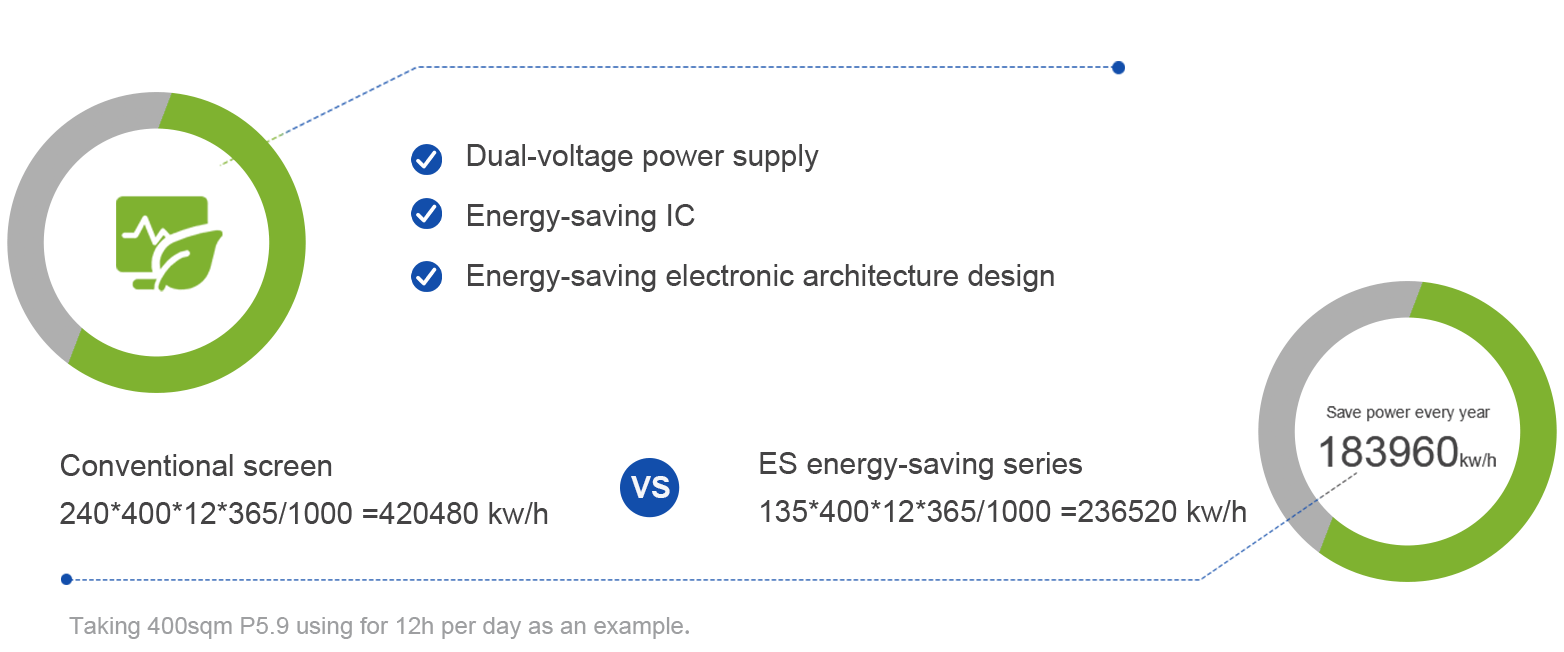

High brightness, energy-saving
Pixel pitch: 3.9mm / 4.8mm / 5.9mm / 7.8mm / 10.4mm / 15.6mm /
Cabinet size: 1000*1000*85/500*1000*85mm
Operating environment: Outdoor
Get a Inquiry Back

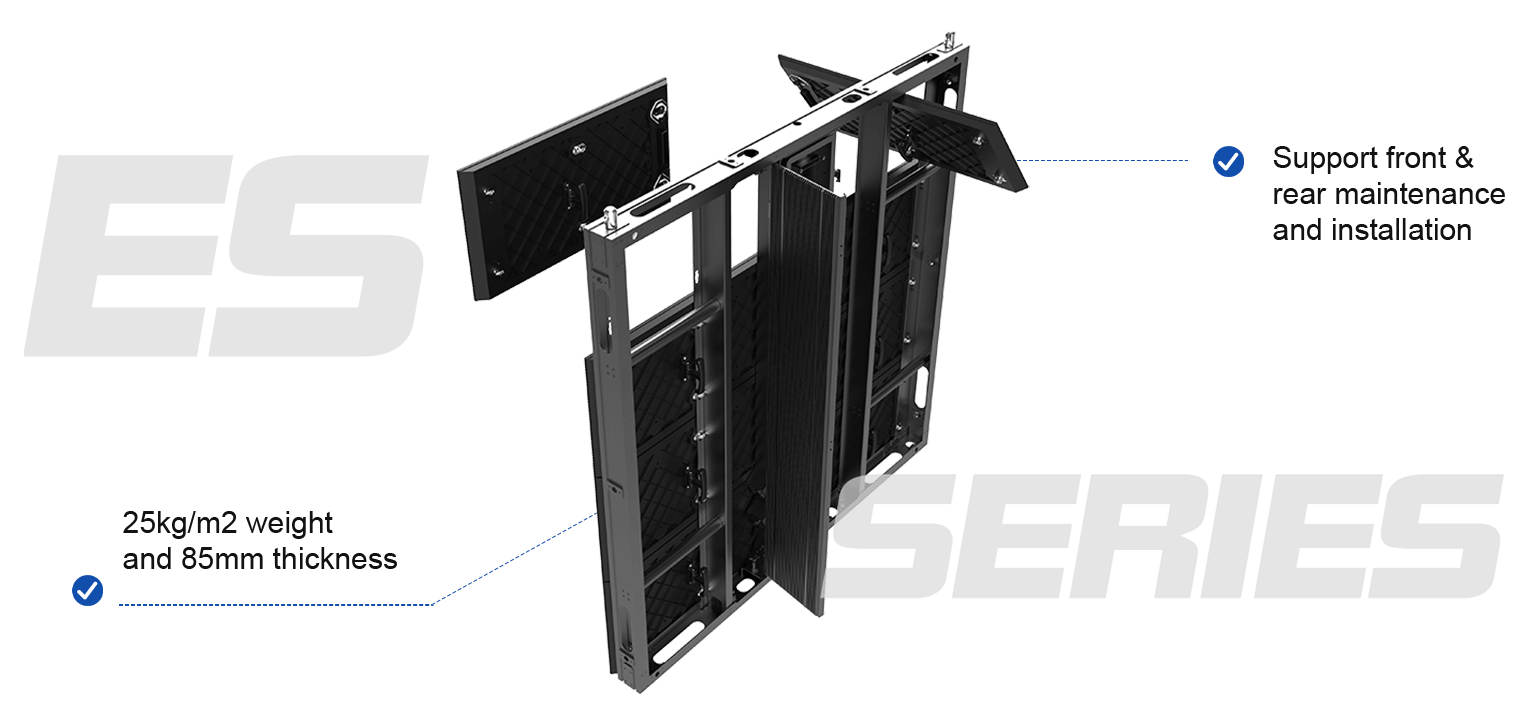

Support front & rear maintenance and installation
25kg/m2 weight and 85mm thickness
| Pixel Pitch (mm) | 3.9 | 4.8 | 5.9 | 7.8 | 10.4 | 15.6 |
| Operating Environment | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Module Size (mm) | 500*250 | 500*250 | 500*250 | 500*250 | 500*250 | 500*250 |
| Cabinet Size (mm) | 500*1000*85 | 500*1000*85 | 1000 * 1000 * 85 / 500 * 1000 * 85 | 1000 * 1000 * 85 / 500 * 1000 * 85 | 1000 * 1000 *85 / 500 * 1000 * 85 | 1000 * 1000 * 85 / 500 * 1000 * 85 |
| Cabinet Resolution (W×H) | 128*256 | 104*208 | 168*168/84*168 | 128*128/64*128 | 96*96/48*96 | 64*64/32*64 |
| IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Weight (kg/cabinet) | 15 | 15 | 25/15 | 25/15 | 25/15 | 25/15 |
| White Balance Brightness (nit) | 5500-6000 | 5500-6000 | 6000-6500 | 6000-6500 | 6000-6500 | 5000-6000 |
| Horizontal / Vertical Viewing Angle | 160/120 | 160/120 | 160/80 | 150/70 160/120 | 150/80 160/120 | 140/110 |
| Power Consumption(W/㎡) | 840±15%/280±15% | 800±15%/267±15% | 700±15%/233±15% | 700±15%/233±15% | 700±15%/233±15% | 680±15%/227±15% |
| Refresh Rate(Hz) | ≥1920(1920 ` 2880 ` 3840...) | ≥1920(1920 ` 2880 ` 3840...) | ≥1920(1920 ` 2880 ` 3840...) | ≥1920(1920 ` 2880 ` 3840...) | ≥1920(1920 ` 2880 ` 3840...) | ≥1920(1920 ` 2880 ` 3840...) |
| Control System | Nova | Nova | Nova | Nova | Nova | Nova |
| Certification | CE ` FCC ` ETL | CE ` FCC ` ETL | CE ` FCC ` ETL | CE ` FCC ` ETL | CE ` FCC ` ETL | CE ` FCC ` ETL |
